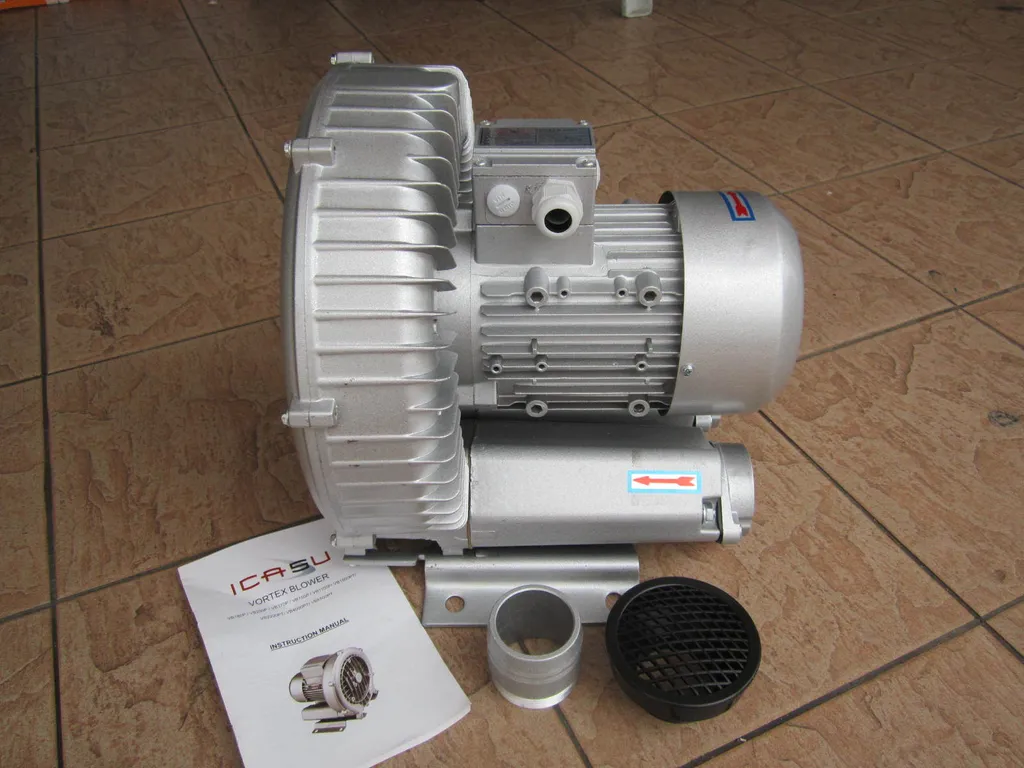

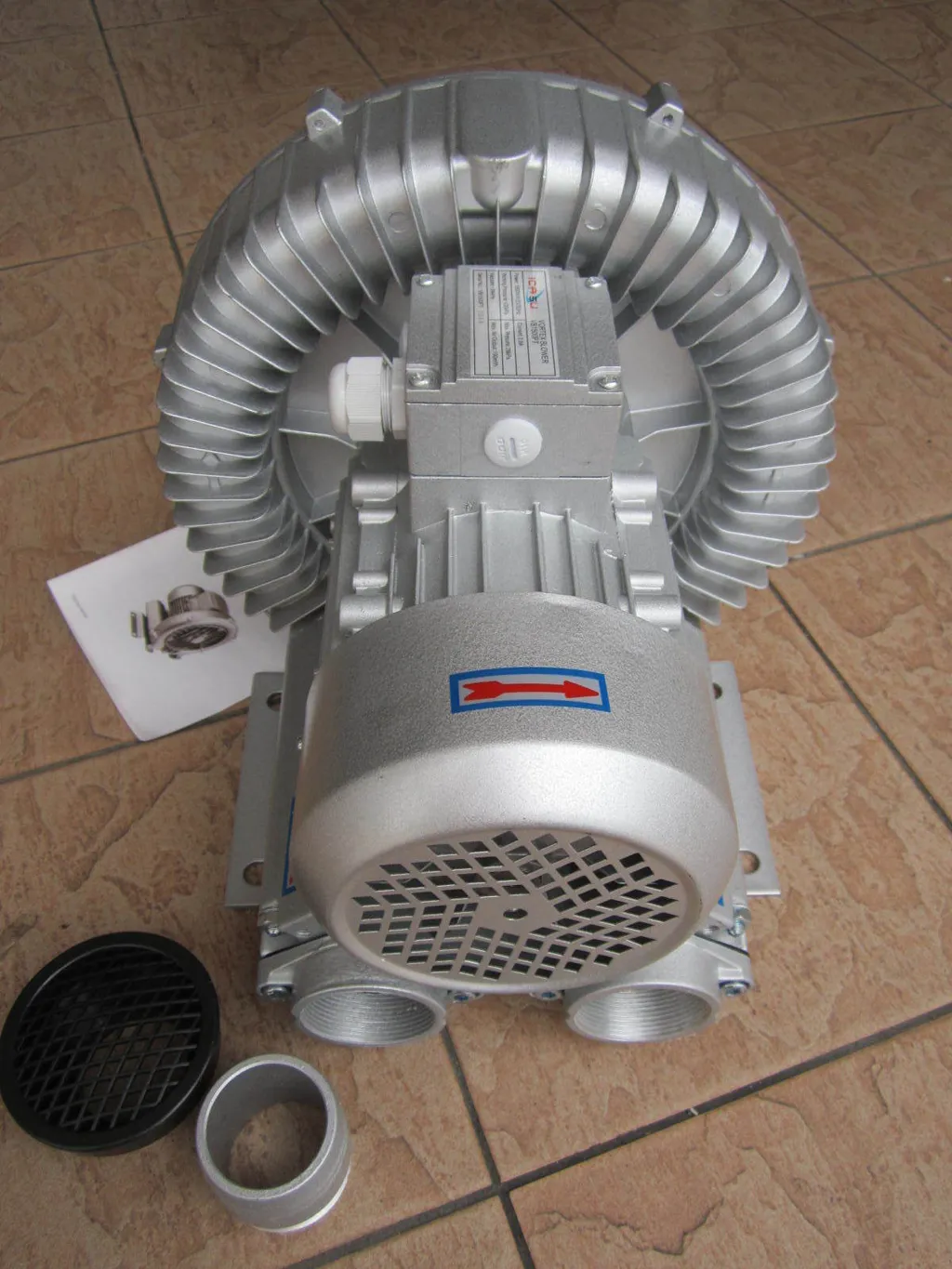

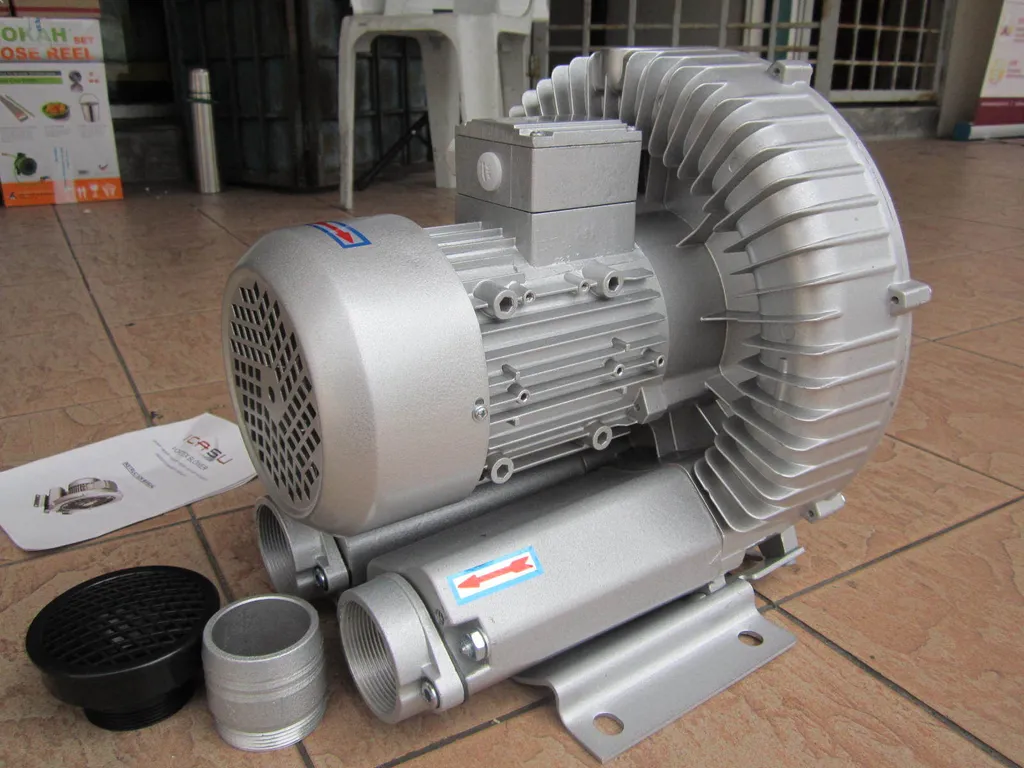

Icasu 2.0HP (1.5kW) 415V 3-Phase Vortex Ring Blower

Icasu 2.0HP (1.5kW) 415V 3-Phase Vortex Ring Blower..
Model VB1500PT

Icasu Ring Blowers are designed with practical regenerative theory.
Require no maintenance! No oily odor! Eternity life!

**Technical data**
.Low noise and vibration. Dynamic balancing minimizes vibration.
.Dust-proofed shaft seal. Protects bearing from contaminated air stream and possible foreign particle damage.
.High reliability. Directly connected motor shaft-impeller provides reliable, long term performance. No gears, belts, motor brushes or sliding blades to require periodic maintenance.
.Space-efficient design. Unique design results in substantial air flows at moderate pressures in minimum space and weight.
.Versatility. Easily throttled and changed from pressure to suction operation. May be mounted in a variety of fashions.
.Stable airflow. Centrifugal compressor design delivers smooth, stable airflow with no pulsations.
.High-pressure airflow. Produces continuous high-pressure airflow. The Ring Blower is ideally suited to many industrial applications.
.A policy of continuous improvement is followed, and the right to alter any published data without notice is reserved.
.The maximum permissible temperature and the gas temperature at the inlet is 40°C.

**Applications**
.Grain elevators
.Textile fiber collections
.Paper industry
.Sewage treatments
.Cement manufacturing
.Diesel burning
.Pulp industry
.Class manufacturing
.Ice manufacturing
.Tunnel ventilation
.Fishery industry

**Specifications**

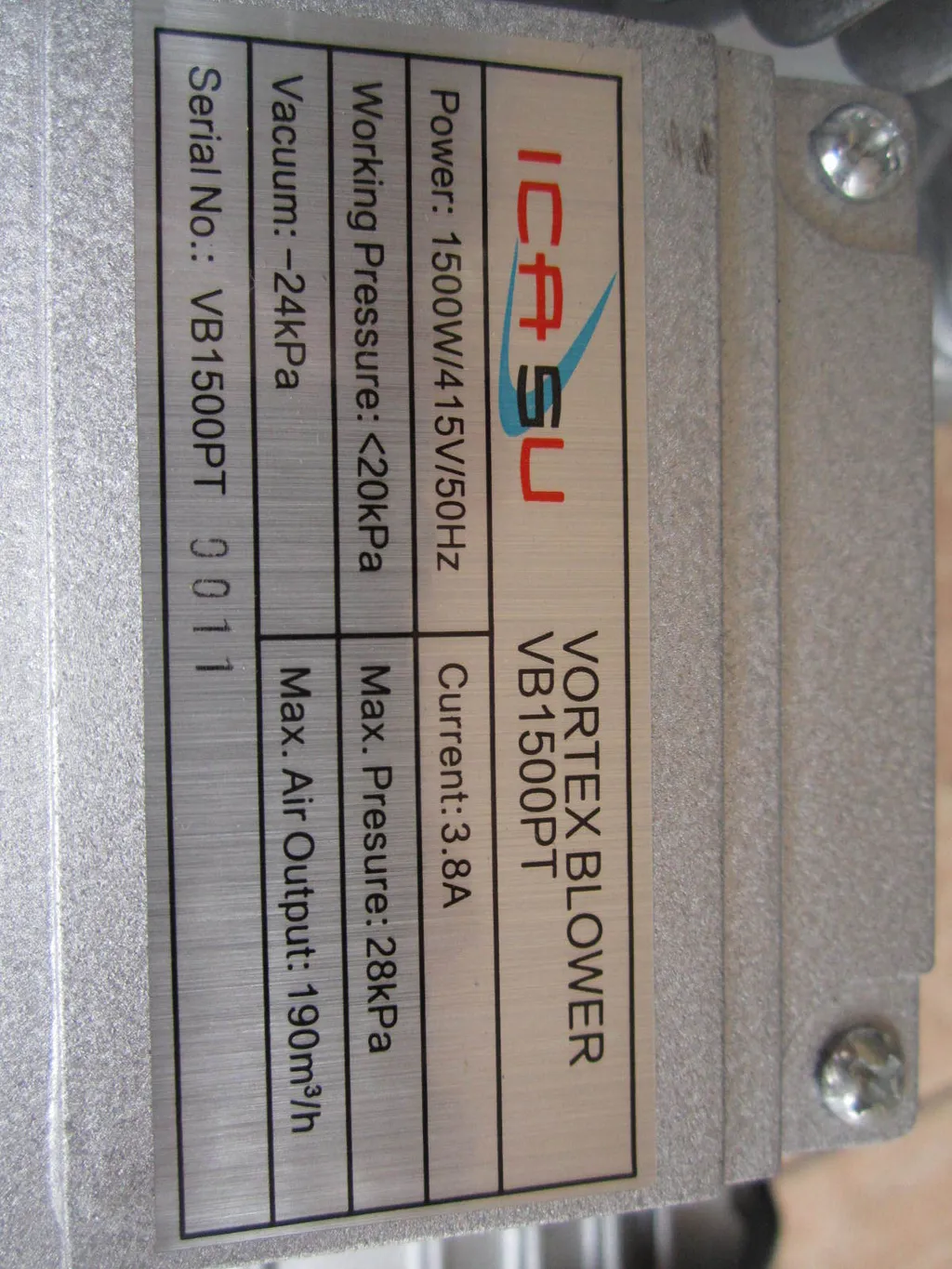

Model VB1500PT
Voltage 415V 50Hz (3-Phase)
Power 1500W (2.0HP)
Current 3.8A
Working pressure < 20kPa
Max. pressure 28kPa
Vacuum -24kPa
Max. air output 190m3/hour

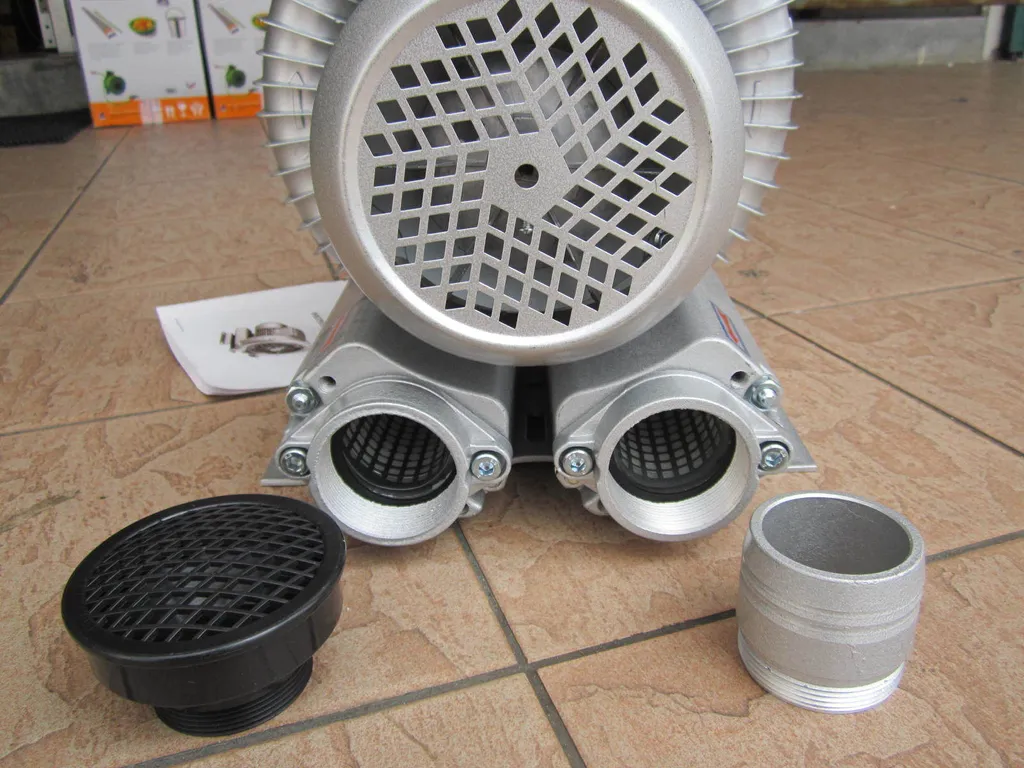

In/Out diameter 2.0" (50mm)
Net weight 23kg
Warranty 6 months

PRICE RM980.00..(Icasu Industrial Ventilator Blower Fan)..
