Grundfos 1.5Bar Pressure Automatic Pump Controller PM Start

Grundfos 1.5Bar Pressure Automatic Pump Controller PM Start..

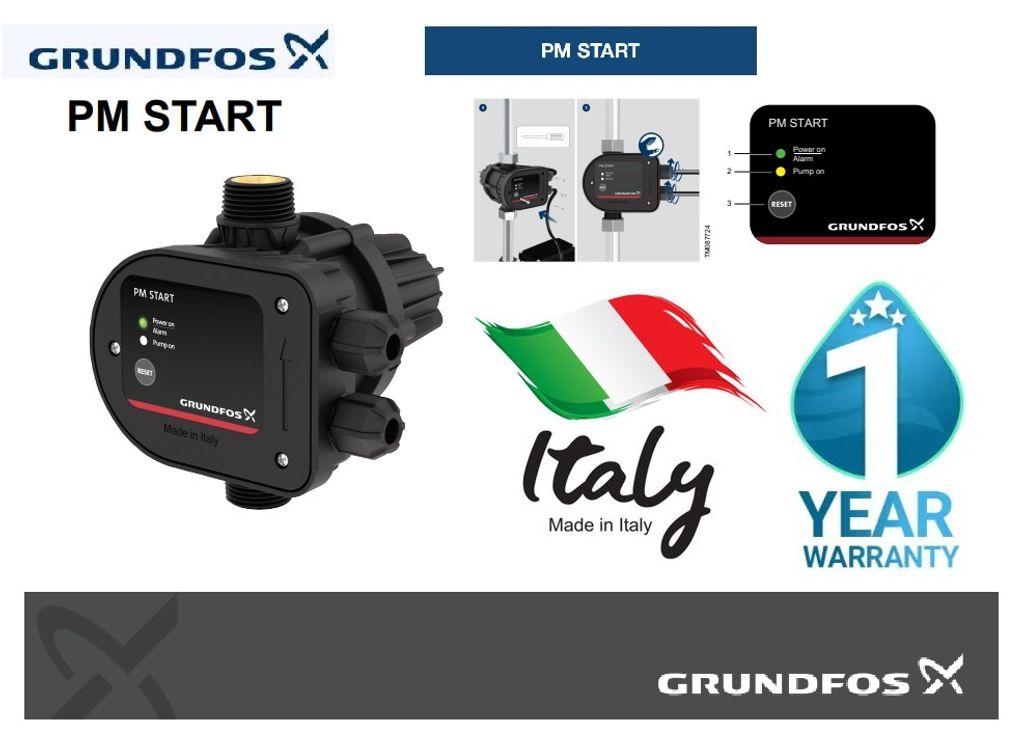

Model PM Start

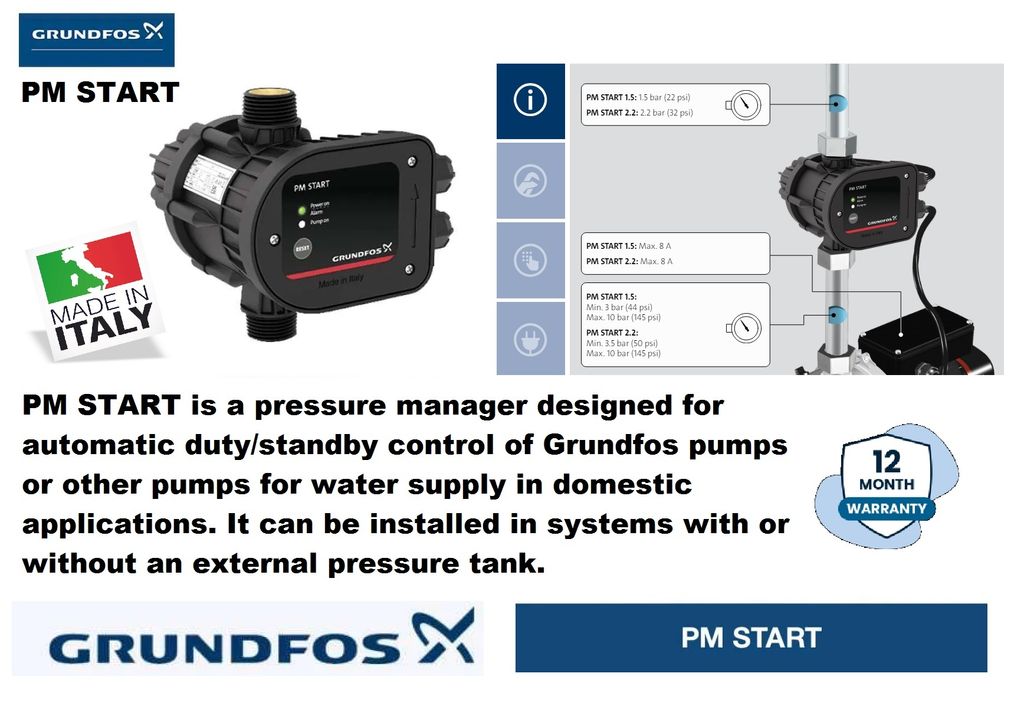

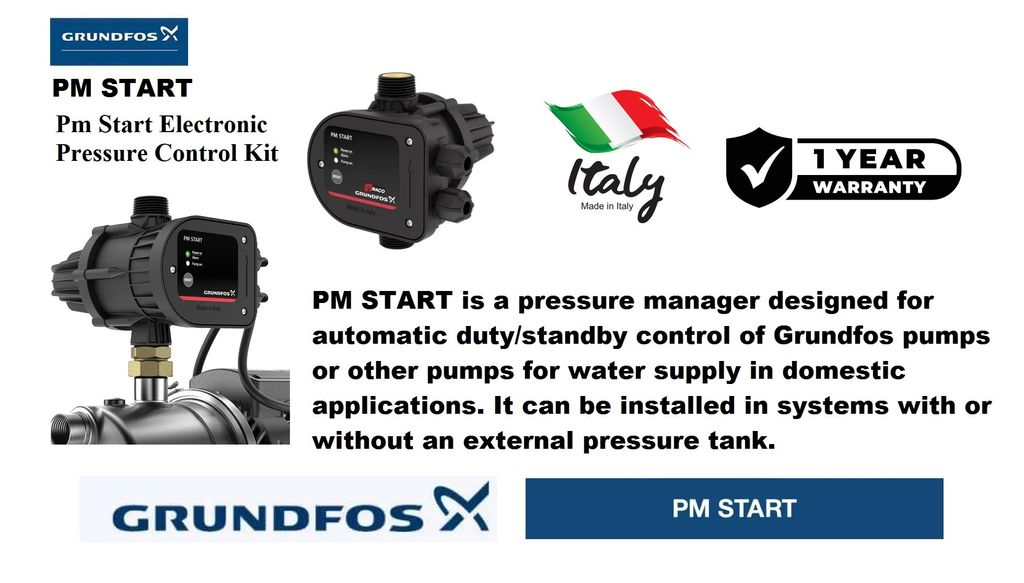

PM START is a pressure manager designed for automatic start/stop control of Grundfos pumps and other water supply pumps. It offers basic control features as well as dry-running protection and automatic restart.

PM START starts the pump when a start cut-in pressure of 1.5 or 2.2 bar is reached and keeps the pump running as long as there is sufficient flow. PM START stops the pump in case of water shortage and protects it from dry running.

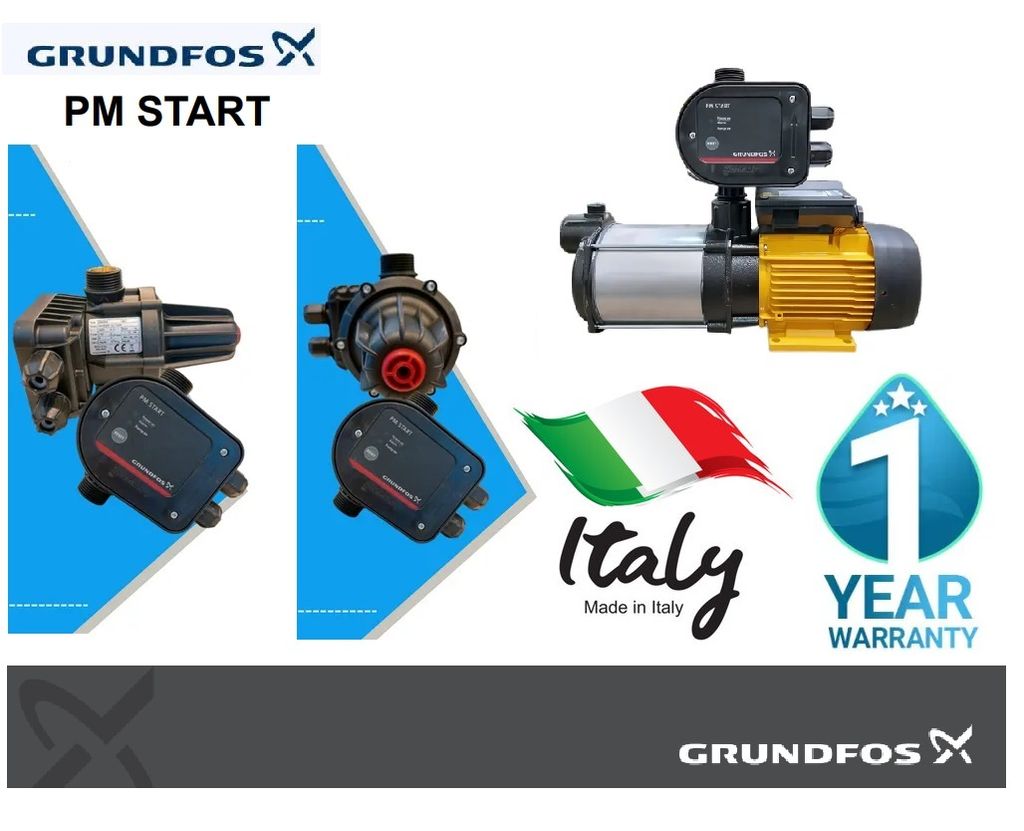

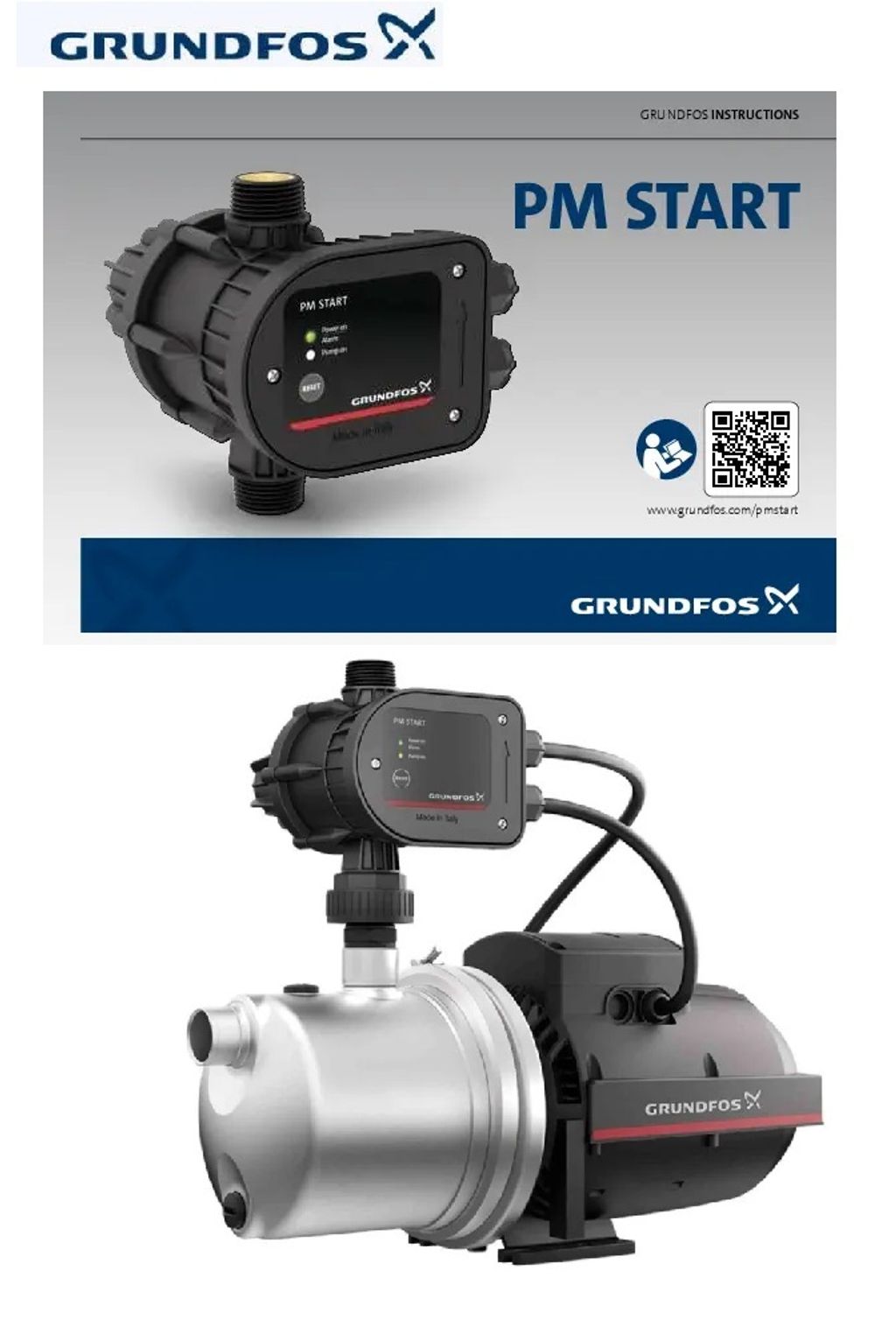

The product can be mounted in connection with a tank or

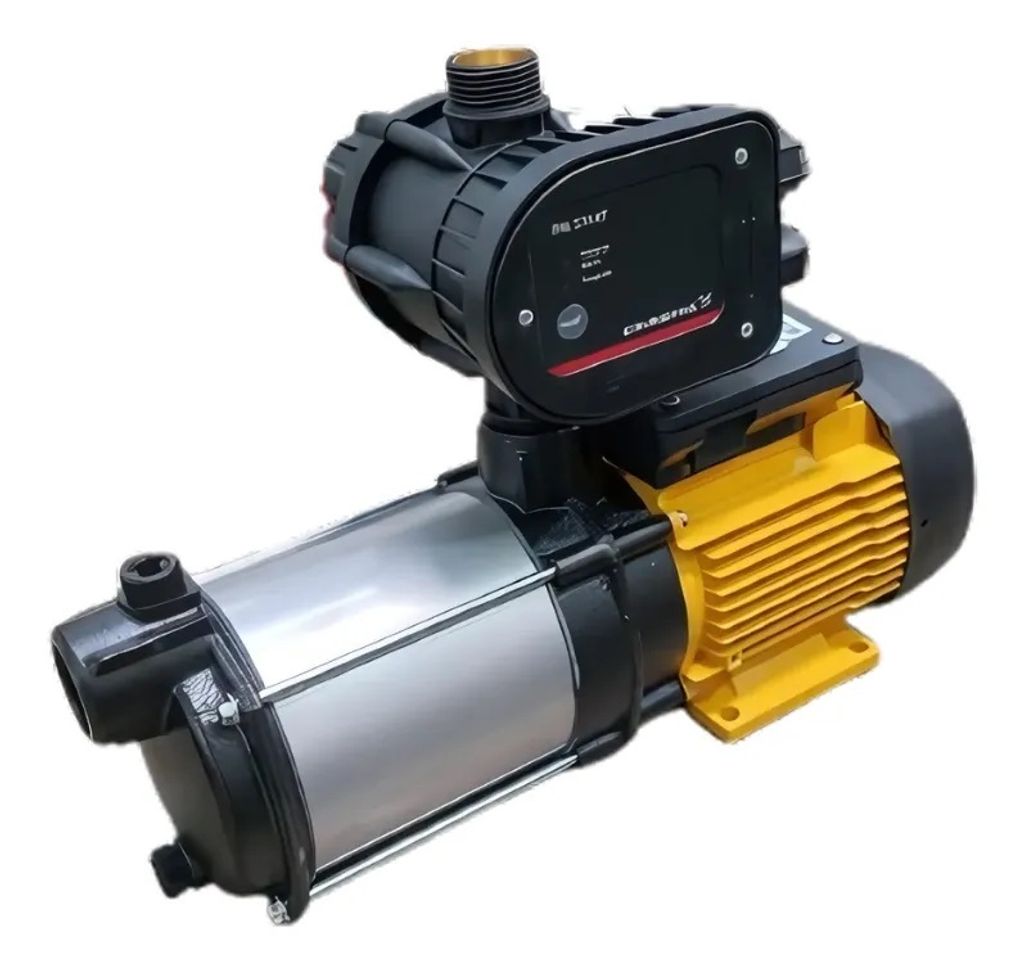

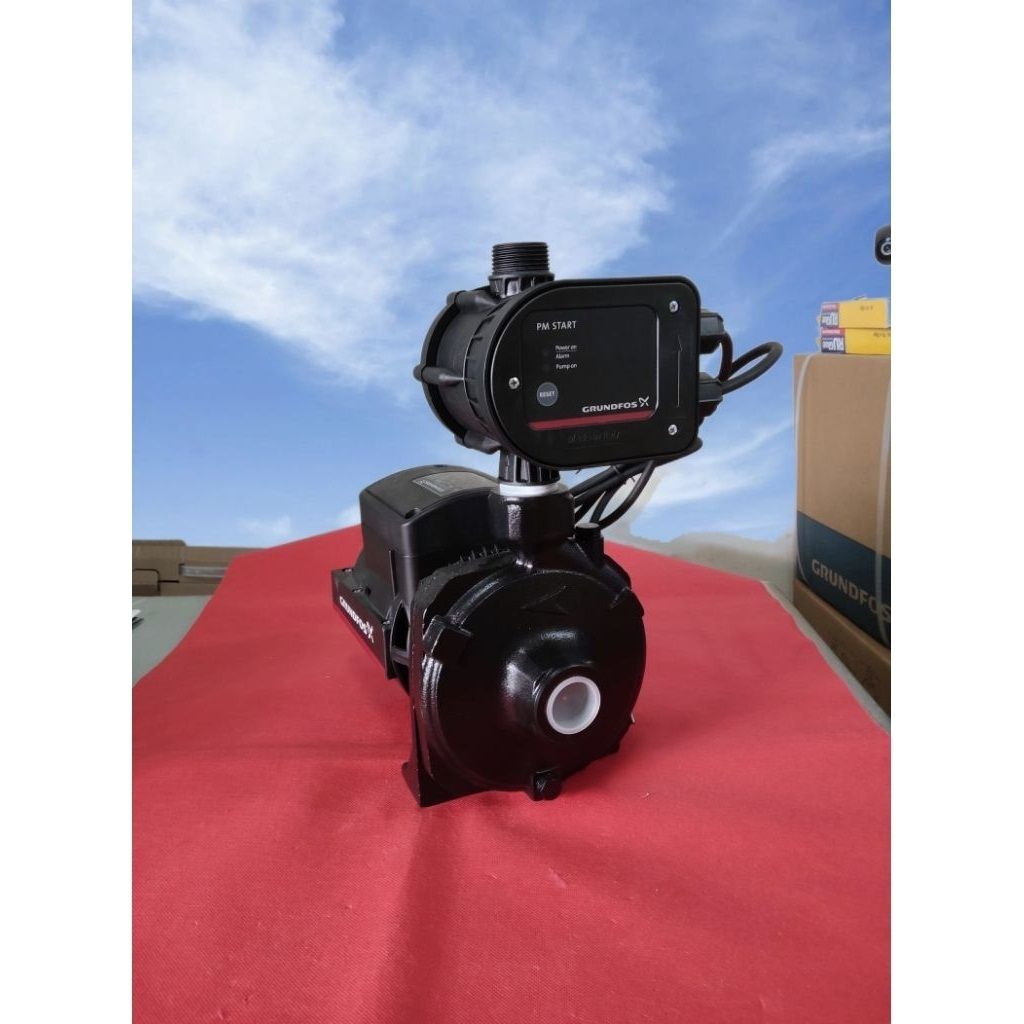

directly on a pump.

**Applications**

• single-family houses

• blocks of flats

• summer houses and holiday cottages

• horticulture and gardening

• agriculture

**Features**

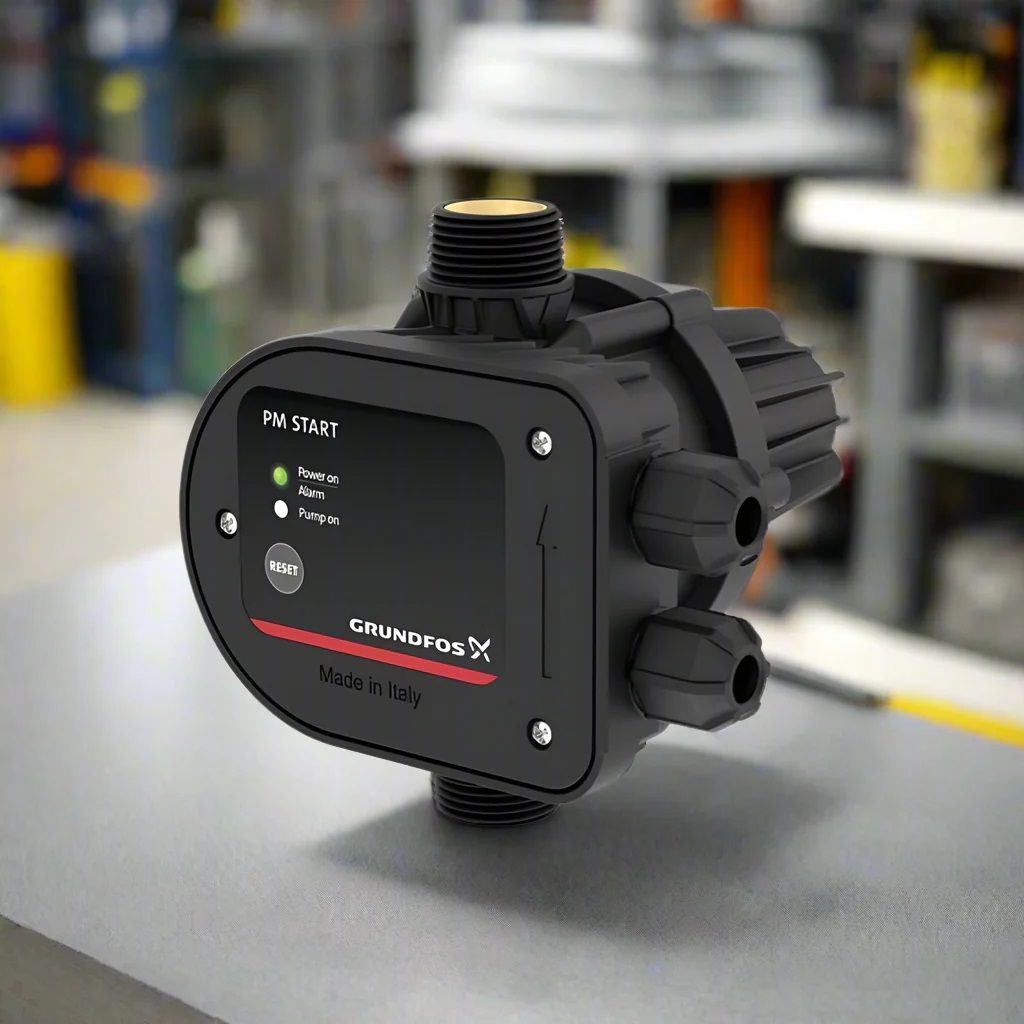

• alarm indication

• dry-running protection

• integrated non-return valve

• internal pressure membrane and tank

• suitable for generator operation.

• manufacturer warranty 12 months

**Specifications**

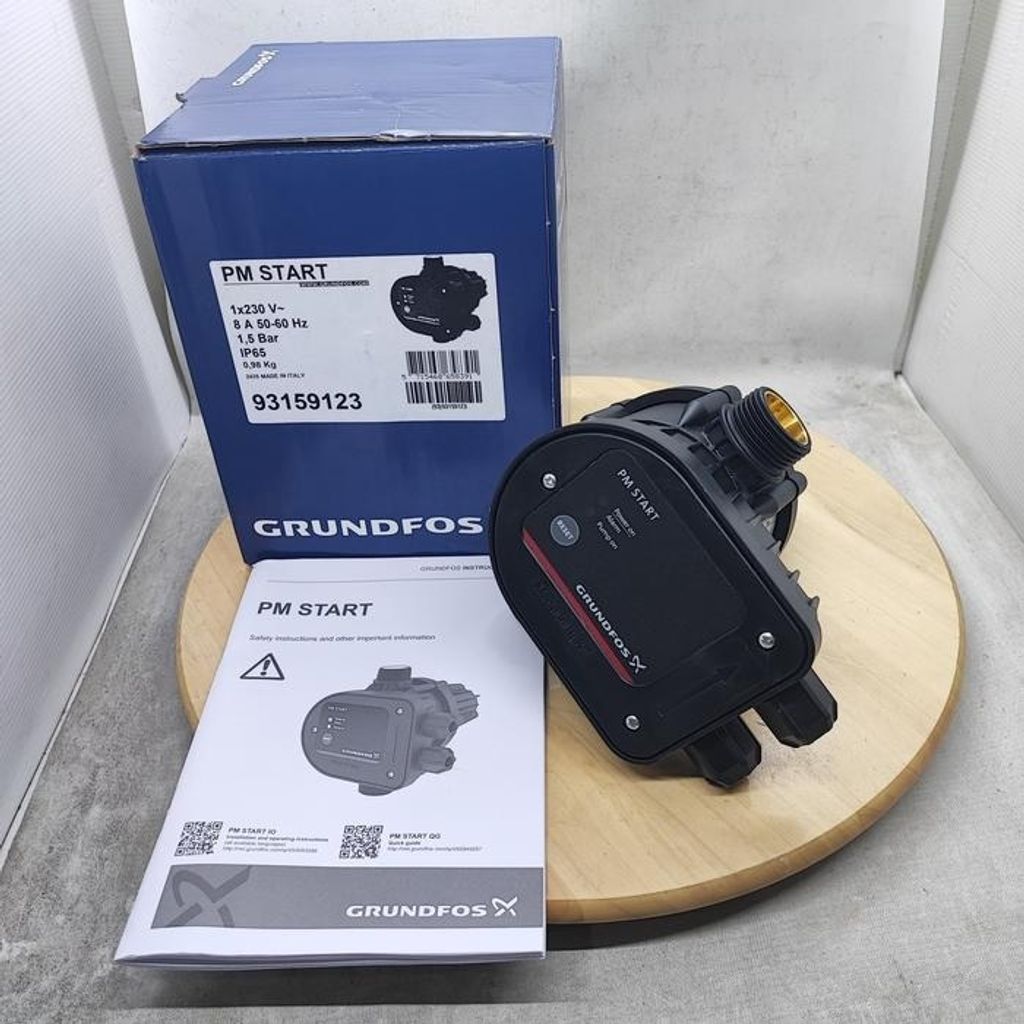

Brand Grundfos

Product no. 93159123

Product name PM Start

Rated voltage 220-240 VAC 50/60 Hz

Max. power 1100W / 1.5Hp

Start pressure 1.5 bar

Connection type G 1-inch

Ambient temperature 0-60 °C (140 °F)

Liquid temperature 0-60 °C (140 °F)

Max. current 8 A

Enclosure class IP 65

Max. operating pressure 10 bar (145 psi)

Pumped liquids Clean water

Gross weight 1.1kgs

Made in Italy

Warranty 1 years

PRICE RM480.00..(Grundfos be think innovate)..
