Grundfos Unilift AP35B 3 x 400V Submersible Wastewater Pumps

Grundfos Unilift AP35B 3 x 400V Submersible Wastewater Pumps..
Unilift AP35B.50.06.3.V

Submersible effluent pump
Vertical single-stage stainless steel submersible pump with integrated submersible 3-phase motor.

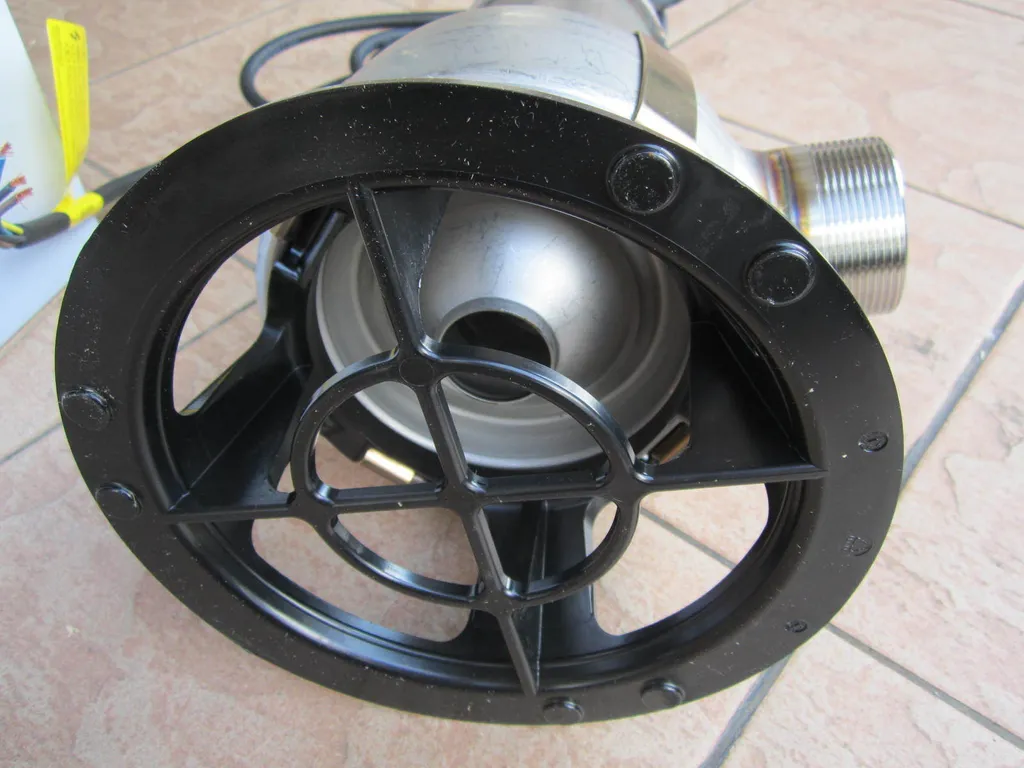

The pump is fitted with ring stand and carrying handle and is supplied with a 5 m mains cable.

The impeller is a VORTEX impeller for 35 mm free passage suitable for pumping surface water, groundwater, wastewater and similar.

The pump has a double shaft seal and an intermediate oil chamber pre-filled with non-toxic special oil.

The motor is insulation class F and has long-life deep-groove greased-for-life ball bearings.

The pump has R 2" discharge port and is ready for installation either free-standing or on an auto-coupling system.

**Application**
.Rainwater, drainage water and water from flooding
.Pool water
.Effluents from showers, washing machines and sinks below sewer level
.Water and rainwater in horticulture

**Specifications**
Product name Unilift AP35B.50.06.3.V
Product No. 96004565
EAN number 5700391488689
Max flow 5 l/s
Head max 11 m
Type of impeller VORTEX
Maximum particle size 35 mm
Pump housing Stainless steel
Pump housing DIN W.-Nr. 1.4301
Pump housing AISI 304
Impeller Stainless steel
Impeller DIN W.-Nr. 1.4301
Impeller AISI 304
Pump outlet R 2"
Maximum installation depth 2 m
Power input -
.P1 - 1 kW
.P2 - 0.63 kW
Mains frequency 50 Hz
Rated voltage 3 x 400 V
Rated current 1.55 A
Cos phi - power factor 0.89
Rated speed 2830 rpm
Enclosure class (IEC 34-5) IP68
Insulation class (IEC 85) F
Motor protec NONE
Thermal protec external
Length of cable 5 m
Net weight 8.5 kg
Gross weight 9.5 kg
Warranty 1 years

PRICE RM2,199.00..(Grundfos be think innovate)..
