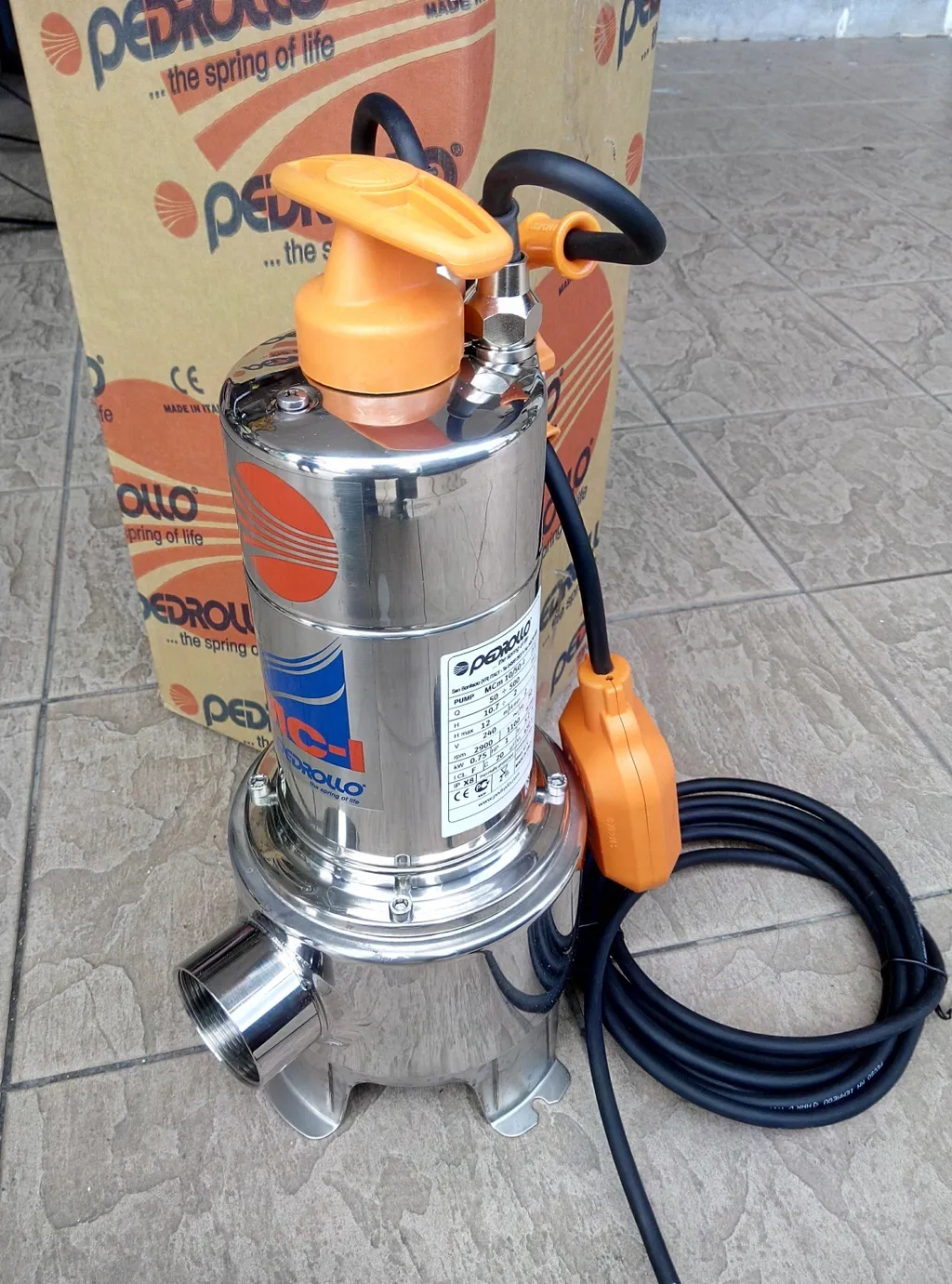

Pedrollo 1HP Two-Channel Submersible Sewage Pump

Pedrollo 1HP Two-Channel Submersible Sewage Pump..
Model MCm10/50-i
TWO-CHANNEL submersible pumps, in stainless steel, for professional use, with generous dimensions, particularly reliable; characterised by high yield.

**RANGE OF PERFORMANCE**
Flow rate up to 500 l/min (48 m3/h)
Head up to 10.7 m

**LIMITS OF USE**
Depth of use up to 5 m
Liquid temperature up to + 40°C
Passage of suspended solid bodies up to Ø 50 mm
For continuous duty: minimum immersion 280 mm

**CONSTRUCTION CHARACTERISTICS**
.DELIVERY BODY: stainless steel AISI 304, with threaded inlet ISO 228/1.
.MOTOR JACKET AND BASE: stainless steel AISI 304.
.IMPELLAR: two-channel, in stainless steel AISI 304.
.MOTOR SHAFT: stainless steel AISI 316.
.DOUBLE MECHANICAL SEAL: carburundum - NBR - stainless steel AISI 316 pump side and sealing ring on motor side (with interposed oil barrier chamber for lubricating and cooling the seal surfaces in case of lack of water).
.MOTOR: submersible asynchronous for continuous duty.
.MCm-I: single-phase 220~240 V - 50 Hz with condenser and thermal overload protector built into the winding.
.INSULATCION: class F.
.PROTECTION: IP 68.

**SPECIFICATIONS**
Model MCm10/50-i
Flow rate 50 ~ 500l/min
Total head 10.7 ~ 2m
Max. head 12m
Voltage 240V (Single Phase)
Frequency 50Hz
Power 0.75kW / 1HP
Current 5.2A
Speed 2900rpm
Insulation class F
Protection IP X8
Weight 12.8kg
Thermally protected / Continuous duty
Made in Italy
Warranty 1 years

PRICE RM1,999.00*..(Pedrollo the spring of life)..
*Price are inclusive 6% GST.
