Sanso PMD-641 Magnetic Pumps for Chemical and Seawater (Made Japan)

Sanso PMD-641 Magnetic Pumps for Chemical and Seawater (Made Japan)..

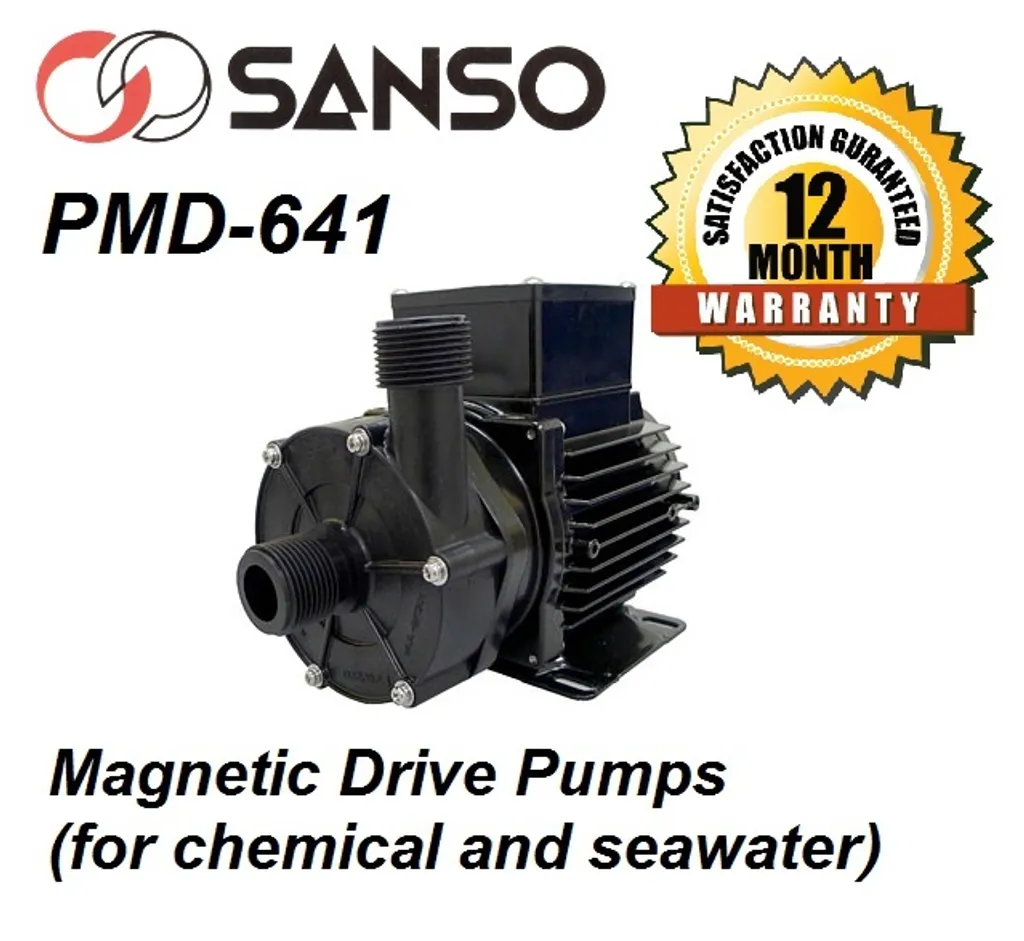

Model PMD-641

Sanso Magnetic Drive Pumps (for chemical and seawater)

PMD (Magnetic coupling type)

**Characteristics**

●High performance and energy saving

Compared to the conventional products, the pump efficiency increased by 35%.This type became smaller, lighter, 5-dB quieter and 50% reduction in vibration.

●Long-life and no liquid leakage

There is no liquid leakage due to no shaft seal part,As made of resin, this type is appropriate for transporting highly-corrosive special liquid.

●Complete no liquid leakage

This type is seal-less pumps based on the magnet coupling system. The pump section will never have liquid leakage, corrosion, dirt around the pump and troublesome mechanical seal replacement.

**Application**

●Circulation of sea water,culture tank and water tank,etc.

●Drain chemical liquid,transfer of chemical liquid,etc.

●Waste water treatment equipment,Aquarium equipment,PCB equipment,Solar heating system,Filter,Bubble bath,Etching equipment,Printing equipment,Chillers,Cooling of NC machine,Ice maker,etc.

**Caution**

.Chemical resistance must be verified before using the products by checking whether an intended purpose can be achieved with a preliminary test,etc.

.In order to use cold water, apply lagging materials and/or heat-insulating materials as measures against dew condensation if necessary.

**Specifications**

Brand Sanso

Model PMD-641

Rated output 65W

Frequency 50Hz

Phase single

Voltage 220 - 240V

Hose diameter G1"

Total head 5 - 3mtr

Rated flow rate 23 - 50L/min

Speed 2860min-1

Insulation Class B

Protection IP44

Indoor liquid temperature 60°C

Bearing (PTFE)

O-Ring (FKM)

Made in Japan

Warranty 12 months

PRICE RM1,699.00..(SANSO ELECTRIC CO., LTD.)..
